Complex Style Noise Filters

Highly efficient complex style EMI filters combining feed through capacitors with high selfresonating, multilayer ceramic capacitors with large capacitance, multilayered varistors, impedance components, etc.

Type Description Working
voltage
[V]		 Varistor voltage
VDC at 1 mA
[V]		 Withstanding
voltage VDC
[V]		 Max. clamping
voltage
[V]		 Rated current
[A]		 Peak current
(8/20 µs)
[A]		 Impedance
at 100 MHz
[Ω]		 Resistance
[mW]		 Operating
temperature
[°C]		 Enlarge using the cursor

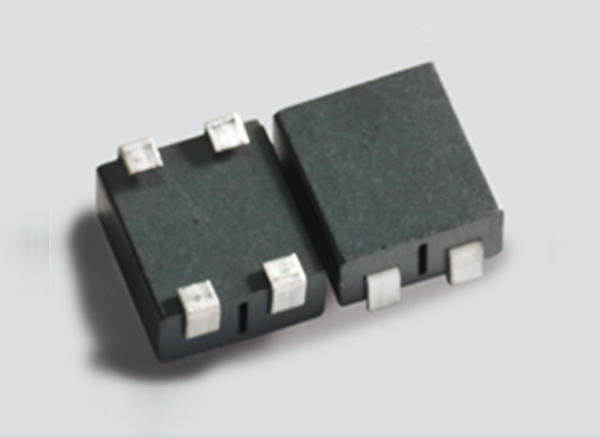

PMZ7060L2AAMV-01 PMZ/AMV Series:
  • noise countermeasure parts of the SMD type the core of which was ferrite raw materials
  • excellent noise reduction characteristics in the DC power line of any electronic device
  • they can be used in the +155°C environment for high frequency band (100 MHz or higher)
  • AEC-Q200 compliant
Equivalent circuit		 100       10   100 5 -55 – +155
PMZ7060L2AAMV-02 100       10   65 5
PMZ4532L2AAMV-01 100       10   70 5

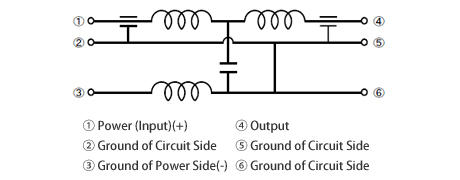

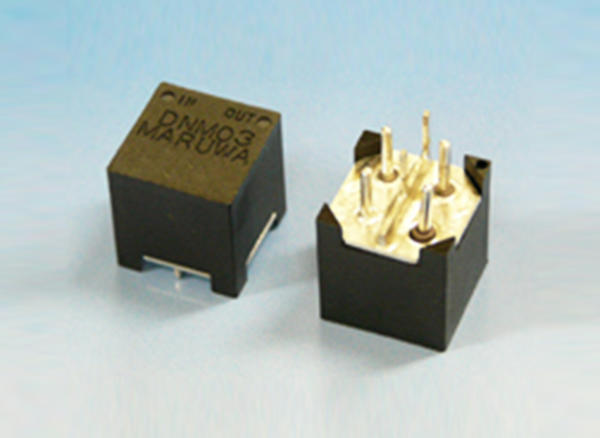

DNM01-S DNM Series:
  • highly efficient block type EMI filters combining feed through capacitors, multilayer ceramic capacitors with large capacitance, and inductors
  • they are used for power lines
  • since current channels have no internal connection they achieve large allowable current, and can be used for DC lines up to 15A
Equivalent circuit		 50       10   100 5 -25 – +105
DNM02-S 250       10   65 5
DNM03-S 50       15   70 5

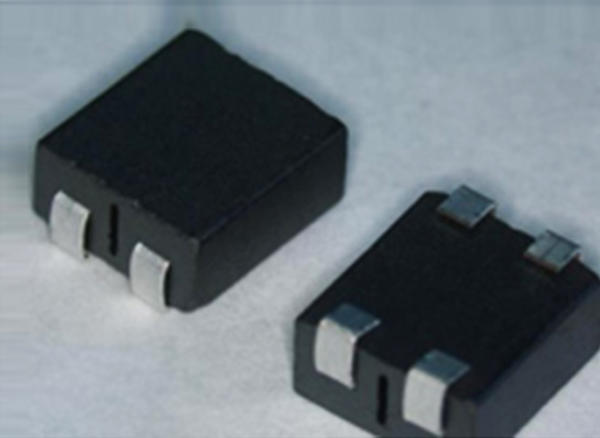

DPM02 DPM Series:
  • impedance devices aiming to reduce the number of parts and total cost of peripheral parts of digital audio power amplification
  • used in filters for audio power amplifiers of digital television systems, gaming machines and other audio equipment
Equivalent circuit		 30   75   5   65 5 -55 – +125
DPM03 30   75   5   100 5

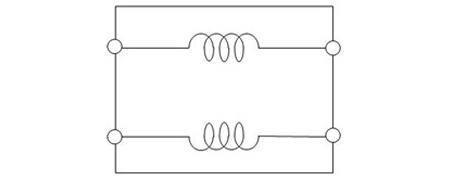

PMZ7060L1H-01 PMZ Series:
  • noise countermeasure parts of the SMD type the core of which was ferrite raw materials
  • excellent noise reduction characteristics in the DC power line of any electronic device
  • large allowable current
Equivalent circuit		 50       8   100 5 -55 – +125
PMZ7060L1H-02 50       8   65 5

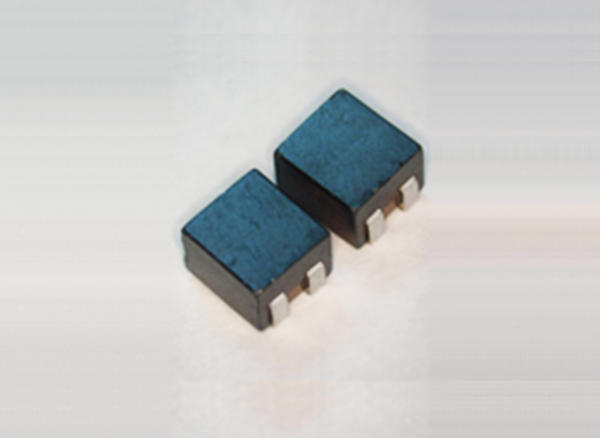

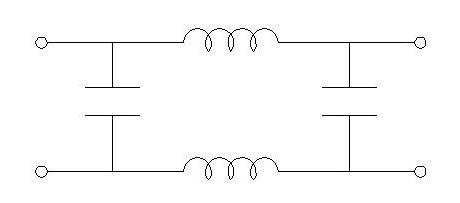

PMF7060C1E-01-T PMF Series:
  • noise countermeasure parts of the SMD type the core of which was ferrite raw materials
  • excellent noise reduction characteristics in the DC power line of any electronic device
  • noise countermeasure of the broadband by combining with multilayer ceramic capacitors
  • large allowable current
Equivalent circuit		 25   50   10   100 5 -55 – +125
PMF7060C1H-01-T 50   100   10   65 5
PMF7060C2A-01-T 100   200   10   65 5

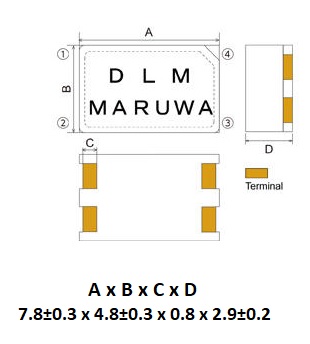

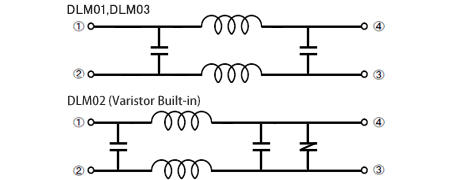

DLM01-01-T DLM Series:
  • EMI filters with π type circuit structure with ceramic capacitors, inductors and varistor
  • compact size
  • large insertion loss characteristics in wide frequency range
  • varistor has excellent efficiency on absorption of switching surge and electrostatic surge
  • large allowable current therefore, they can be used on the large current DC lines
Equivalent circuit
Dimensions		 16   32   3.5       -55 – +125
DLM01-02-T 25   50   3.5
DLM01-03-T 50   100   3.5
DLM02-01-T 16 27 16 50 3.5 160
DLM02-02-T 25 33 25 60 3.5 160
DLM03-01-T 16   32   7.0
DLM03-02-T 25   50   7.0
DLM03-03-T 50   100   7.0

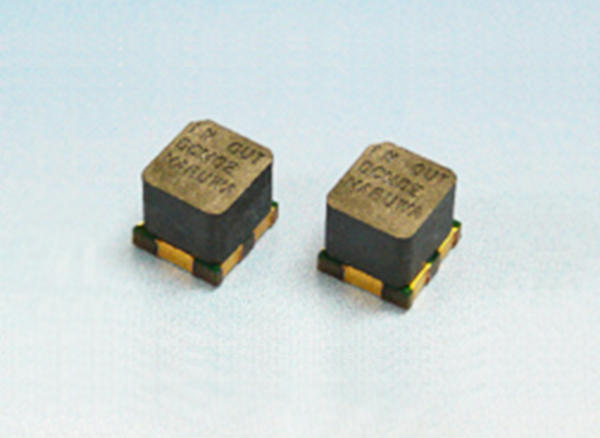

DCM01-T
 (234 kB) 		DCM Series:
  • block type EMI filters used in power lines
  • effective combination of feed through capacitors with high selfresonating, multilayer ceramic capacitors with large capacitance, and impedance components
  • compact size
  • large insertion loss characteristics in wide frequency range
  • large allowable current therefore, they can be used on the large current DC lines
Equivalent circuit		 50   100   10     5 -25 – +105
DCM02-T
 (234 kB) 		50   100   10     5 -25 – +105
