Capacitors

Multilayer Ceramic Capacitors - stack type

Ceramic capacitors which have high capacitance by parallel connecting high voltage multilayer ceramic capacitors with multiple metal frame. They have smaller ESR and ESL compared to aluminum electrolysis capacitors or film capacitors.

Type Description SMD size
[mm]
Capacitance
[nF]
Tolerance
[%]
Working
voltage
[V]
Operating
temperature
[°C]
Temperature
characteristic
Enlarge using the cursor
BCF Series
 (165 kB)
BCF / BSF / BCS series block type ceramic capacitors
  • high capacitance
  • low ESR
  • high frequency characteristics by low ESL
Specifications can be customized.
  3300 - 350000   50 - 630 -55 – +125 X7R
BSF Series
 (165 kB)
  3300 - 350000   50 - 630 X7R
BCS Series
 (165 kB)
  2200 - 350000   50 - 630 X7R

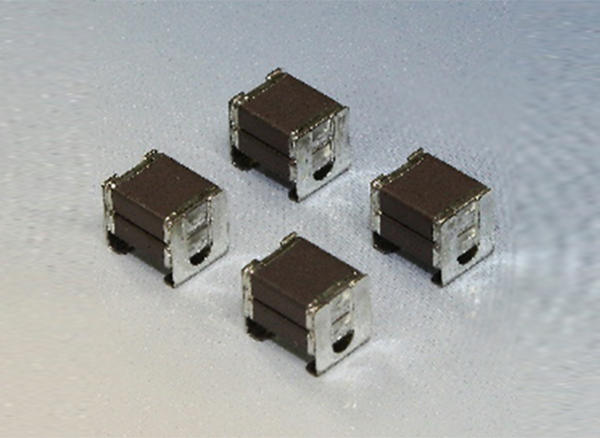

RS80R1H106M-TPNT RS Series (Stacked Type Ceramic Capacitors)
  • large capacitance
  • they take up the same board space as one standard chip capacitor
  • wide operating voltage range
  • perfect for compact solutions such as switching power supplies and DC/DC converters
  • temperature range: -55 – +125
  • temperature characteristic: X7R
  • capacitance tolerance: M (±20%)
6.2x5.0x6.0 10000 M (±20%) 50 -55 – +125 X7R
RS80R1H226M-TPNT 6.2x5.0x6.5 22000 50 X7R
RS80R2A475M-TPNT 6.2x5.0x6.0 4700 100 X7R
RS80R2A106M-TPNT 6.2x5.0x6.5 10000 100 X7R
RS80R2E105M-TPNT 6.2x5.0x6.0 1000 250 X7R
RS80R2J224M-TPNT 6.2x5.0x6.0 220 630 X7R
RS80R2E225M-TPNT 6.2x5.0x6.5 2200 250 X7R
RS80R2J474M-TPNT 6.2x5.0x6.5 470 630 X7R
