RF Components
Band Pass Filters

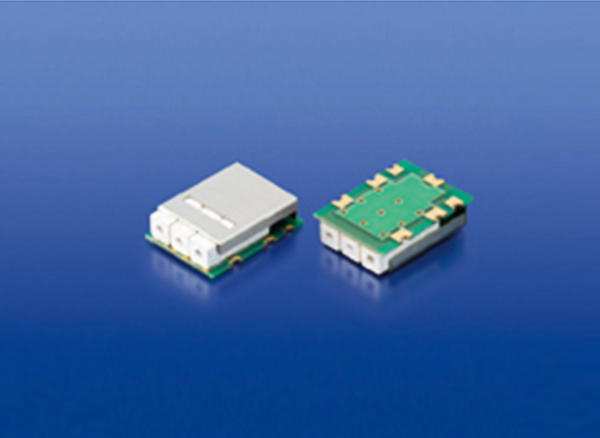

Band Pass Filters (BPF) based on ceramic technologies.
| Type | Description | Dimensions [mm] |
Operating frequency | Enlarge using the cursor |
|---|---|---|---|---|
| MB32P | 2 pole ceramic Band Pass Filter (BPF) which can be also customized. | 8.0×7.0×3.7 | 1.8GHz - 3GHz |
|
| 10.0×7.0×3.7 | 1.0GHz - 2.5GHz | |||
| MB42P | 2 pole ceramic Band Pass Filter (BPF) which can be also customized. | 12.0×9.5×4.9 | 600MHz - 2.5GHz | |
| MB33P | 3 pole ceramic Band Pass Filter (BPF) which can be also customized. | 8.0×10.0×3.7 | 1.8GHz - 3GHz | |
| 13.5×10.0×3.7 | 800MHz - 2.5GHz | |||
| 18.3×10.0×3.7 | 500MHz - 800MHz | |||
| MB43P | 3 pole ceramic Band Pass Filter (BPF) which can be also customized. | 12.0×13.5×4.9 | 800MHz - 2.5GHz | |
| 24.0×13.5×4.9 | 400MHz - 800MHz | |||
| MB34P | 4 pole ceramic Band Pass Filter (BPF) which can be also customized. | 12.0×13.0×3.7 | 800MHz - 3GHz | |
| MB44P | 4 pole ceramic Band Pass Filter (BPF) which can be also customized. | 14.0×18.3×4.8 | 800MHz - 3GHz |
