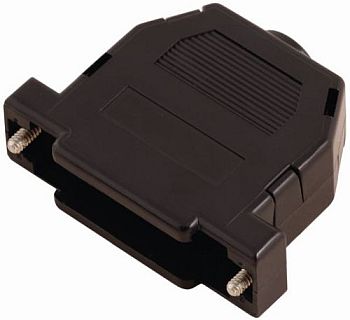

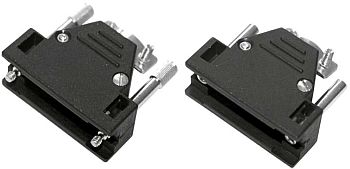

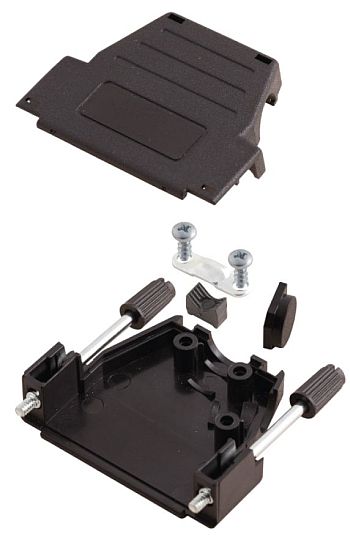

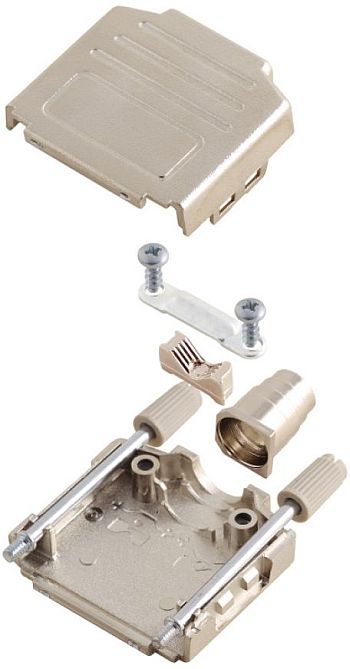

Hoods & Covers Hoods and covers for D-Sub and IDC connectors and for adaptors. Part type Description Total number of contacts Operating temp. [°C] Enlarge using the cursor MHDPPK‑xx‑yy‑K (118 kB) (118 kB) (123 kB) (121 kB) (122 kB) plastic hoods for D-Sub connectors; xx - size (number of connector contacts) yy - colour: black (BK), light grey (LG), DEC grey (DEC), red (R), blue (B), yellow (Y), green (G), white (W) suitable for any common D-sub connectors quick-snap locking system top cable entry thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: strain relief inserts and cable clamp cable diameter: up to 11.5 mm packaging: kitted (K) or bulk 9, 15, 25, 37, 50 -55 - +110 MHED‑DxxT‑K MHED‑DxxTF‑K plastic hoods for D-Sub connectors; xx - size (number of connector contacts) colour: black top cable entry jackscrews: UNC 4-40 male (MHED-DxxT-K) or female (MHED-DxxTF-K) cable fixing: external cable clamp cable diameter: up to 9 mm packaging: kitted 9, 15, 25, 37 -55 - +110 MHED‑DSxxS‑K (66 kB) plastic hoods with Slide-Lock system for D-Sub connectors; xx - size (number of connector contacts) colour: black top and side cable entry Slide-Lock system integrated inside hood with special spring and slide lever cable fixing: external cable clamp cable diameter: up to 9 mm packaging: kitted 9, 15, 25, 37, 50 -55 - +110 MHCCOV‑xx‑SN‑yy plastic hoods for D-Sub connectors; xx - size (number of connector contacts) yy - colour: black (BK), light grey (LG) top cable entry short jackscrews UNC 4-40 cable diameter: up to 11.5 mm packaging: kitted 9, 15, 25 -55 - +110 MHCCOV‑xx‑SC‑yy MHCCOV‑xx‑SCL‑yy (108 kB) (88 kB) plastic hoods for D-Sub connectors; xx - size (number of connector contacts) yy - colour: black (BK), light grey (LG) top cable entry short (MHCCOV-xx-SC-yy) or long (MHCCOV-xx-SCL-yy) jackscrews UNC 4-40 cable fixing: 2-piece cable clamp cable diameter: up to 11.5 mm packaging: kitted 9, 15, 25, 37, 50 -55 - +110 MHDSSK‑P‑xx‑L‑K (206 kB) plastic hoods for two cables for D-Sub connectors; xx - size (number of connector contacts) colour: black suitable for any common D-sub connectors quick-snap locking system cable entries: side and top (L series) or side only (S series) thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: strain relief inserts and cable clamp cable diameter: up to 11.5 mm packaging: kitted (K) or bulk 9, 15, 25 -55 - +110 MHTRI‑P‑xx‑K (138 kB) 9, 15, 25, 37 -55 - +110 MHDTPK‑xx‑K (133 kB) metalized plastic hoods for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper suitable for any common D-sub connectors top cable entry thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -55 - +110 MHDPPK‑M‑xx‑K (176 kB) metalized plastic hoods for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper suitable for any common D-sub connectors quick-snap locking system top cable entry thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: strain relief inserts with cable clamp and metalized cone grommet cable diameter: up to 11.5 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -55 - +110 MHCCOVxx‑SC‑MP MHCCOVxx‑SCL‑MP (86 kB) metalized plastic hoods for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper top cable entry short (MHCCOV-xx-SC-yy) or long (MHCCOV-xx-SCL-yy) jackscrews UNC 4-40 cable fixing: 2-piece cable clamp cable diameter: up to 13 mm packaging: kitted 9, 15, 25, 37, 50 -40 - +120 MHED‑MDxxT‑K MHED‑MDxxTF‑K metalized plastic hoods for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper top cable entry jackscrews: UNC 4-40 male (MHED-MDxxT-K) or female (MHED-MDxxTF-K) cable fixing: external cable clamp cable diameter: up to 9 mm packaging: kitted 9, 15, 25, 37 -55 - +110 MHC88E3xxxxx metalized plastic hoods for D-Sub connectors; xxxxx - size (version number) plating: nickel over copper top cable entry jackscrews UNC 4-40 cable fixing: strain relief / compression insert manufactured in thermoplastic compound cable diameter: up to 16.5 mm packaging: kitted 9, 15, 25, 37, 50 -40 - +120 MHD45PK‑xx‑K MHD45PPK‑xx (146 kB) metalized plastic hoods for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper suitable for any common D-sub connectors 45° side cable entry thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts of various size cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -55 - +110 MHC88E2xxxxx metalized plastic hoods for D-Sub connectors; xxxxx - size (version number) plating: nickel over copper top cable entry jackscrews UNC 4-40 cable fixing: strain relief / compression insert manufactured in thermoplastic compound cable diameter: up to 16.5 mm packaging: kitted 9, 15, 25, 37, 50 -40 - +120 MHDSSK‑M‑xx‑L‑K (206 kB) metalized plastic hoods for two cables for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper suitable for any common D-sub connectors quick-snap locking system cable entries: side and top (L series) or side only (S series) thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: strain relief inserts with cable clamp and metalized cone grommet cable diameter: up to 11.5 mm packaging: kitted (K) or bulk 9, 15, 25 -55 - +110 MHDSSK‑M‑xx‑S‑K 37 MHTRI‑M‑xx‑K (138 kB) metalized plastic hoods for three cables for D-Sub connectors; xx - size (number of connector contacts) plating: nickel over copper three cable entries: two side and one top thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cables fixing: strain relief inserts and cable clamps hood is supplied with 2 blanking plates and 2 strain relief clamps; extra accessories are available on request cable diameter: up to 13 mm packaging: kitted (K) or bulk (on request) 9, 15, 25, 37 -55 - +110 MHDM‑xx‑K (156 kB) MHEE‑xx‑K (142 kB) MHDTZK‑xx‑K (159 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated EMI shielding top cable entry full metal thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size standard assembly with C-clip cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -40 - +120 MHDTZK‑xx‑RA‑K (162 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated EMI shielding top cable entry full metal thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size rapid assembly (RA) cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -40 - +120 MHDTZIxx‑K full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated EMI shielding top cable entry full metal thumbscrews: UNC 4-40 (standard), other upon request cable fixing: double strain relief for strong and secure cable clamping cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37, 50 -40 - +120 MHCCOVxx‑ME MHCCOVxx‑MEL (90 kB) (245 kB) full matal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, chrome plated suitable for any common D-sub connectors top cable entry short (MHCCOVxx-ME) or long (MHCCOVxx-MEL) jackscrews UNC 4-40 cable diameter: up to 16 mm packaging: kitted 9, 15, 25, 37, 50 -40 - +120 MHDTZK‑xx‑BK‑K (174 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, black EMI shielding top cable entry full metal thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size standard assembly with C-clip cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -40 - +120 MHDTZK‑xx‑RA‑BK‑K (119 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, black EMI shielding top cable entry full metal thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size rapid assembly (RA) cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -40 - +120 MHDCMR‑xx‑RA‑K (108 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated 90° side cable entry jackscrews: UNC 4-40 cable fixing: two strain relief inserts (2-piece grommet) of various size cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15 (on request), 25, 37 (on request) -40 - +120 MHDCMRxx‑ULP full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated 90° side cable entry jackscrews: UNC 4-40 cable fixing: compression insert manufactured in thermoplastic compound cable diameter: up to 18.4 mm packaging: kitted 9, 15, 25, 37, 50 (on request) -25 - +90 MHDCMR09‑SL full metal hoods for D-Sub connectors material: zinc, nickel plated 90° side cable entry jackscrews: UNC 4-40 cable fixing: compression insert manufactured in thermoplastic compound cable diameter: up to 18.4 mm packaging: kitted 9 -25 - +90 MHD45ZK‑xx‑K (132 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated EMI shielding 45° side cable entry thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size; metalized grommet on request cable diameter: up to 13 mm (size 9-37) or 17 mm (size 50) packaging: kitted (K) or bulk 9, 15, 25, 37, 50 -40 - +120 MHD45ZK‑xx‑BK‑K (167 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, black EMI shielding 45° side cable entry thumbscrews: UNC 4-40 (standard), M2.5 or M3 upon request cable fixing: two strain relief inserts (2-piece grommet) of various size; metalized grommet on request cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -40 - +120 MHDVSL‑xx‑K (139 kB) full metal hoods for D-Sub connectors; xx - size (number of connector contacts) material: zinc, nickel plated EMI shielding 45° side cable entry Slide-Lock system integrated inside hood cable fixing: two strain relief inserts (2-piece grommet) of various size; metalized grommet on request cable diameter: up to 13 mm packaging: kitted (K) or bulk 9, 15, 25, 37 -40 - +120 MHDAxx‑yyyy‑K‑RC (64 kB) (73 kB) (65 kB) (72 kB) (127 kB) (126 kB) plastic hoods for D-Sub - RJ11/RJ45 adaptors; xx - size (number of D-Sub connector contacts) yyyy - adapter type: SMJ6 - D-Sub female to RJ11 PMJ6 - D-Sub male to RJ11 SMJ8 - D-Sub female to RJ45 PMJ8 - D-Sub male to RJ45 colour: black (blue, green, light grey, red and yellow upon request) unshielded version thumbscrews: UNC 4-40 (standard) delivered complete with wires and D-Sub packaging: kitted 9, 25 -30 - +110 MHDAxx‑yyyy‑M‑K‑RC (149 kB) (131 kB) (156 kB) metalized hoods for D-Sub - RJ45 adaptors; xx - size (number of D-Sub connector contacts) yyyy - adapter type: SMJ8 - D-Sub female to RJ45 PMJ8 - D-Sub Male to RJ45 plating: nickel over copper shielded version thumbscrews: UNC 4-40 (standard) delivered complete with wires and D-Sub packaging: kitted 9, 25 -30 - +90 MHGAxxzz‑yy‑LG‑K‑RC plastic hoods for D-Sub - D-Sub adaptors; xx, zz - size (number of connectors contacts) yy - adapter type: MM - male to male MF - male to female FF - female to female colour: light grey (other colour on request) unshielded version jackscrews: UNC 4-40 (standard) packaging: kitted 9, 15, 25 -30 - +110 MHGAxxzz‑yy‑M‑K‑RC metalized hoods for D-Sub - D-Sub adaptors; xx, zz - size (number of connectors contacts) yyyy - adapter type: MM - male to male MF - male to female FF - female to female plating: nickel over copper shielded version jackscrews: UNC 4-40 (standard) packaging: kitted 9, 15, 25 -30 - +90
