D-Sub & DVI

D-Sub connectors in standard, video, half pitch and high density formats and DVI (Digital Visual Interface) video connectors.

Part type	Description	Total number of contacts	Contact spacing	Row spacing	Current max. [A]	Contact resistance max. [mΩ]	Insulation resistance min. [MΩ]	Operating temp. [°C]	Enlarge using the cursor

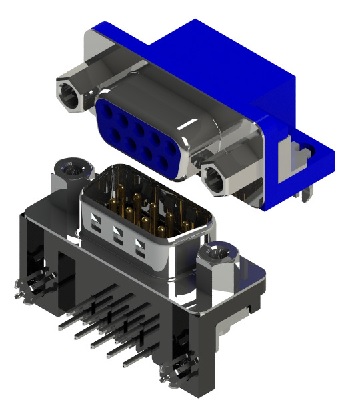

621 622 (203 kB)	a series of D-Sub connectors: 621 - plug, 622 - receptacle two contact rows with 0.318" (8.08 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +105

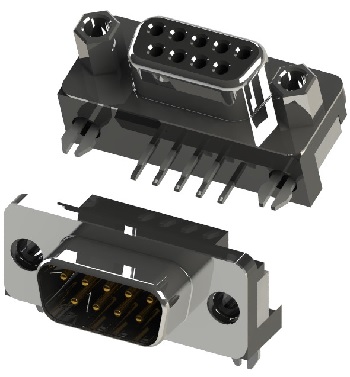

623 624 (187 kB)	a series of D-Sub connectors: 623 - plug, 624 - receptacle two contact rows with 0.200" (5.08 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	9, 15, 25	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +105
625 626 (189 kB)	a series of D-Sub connectors: 625 - plug, 626 - receptacle two contact rows with 0.590" (14.99 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +105

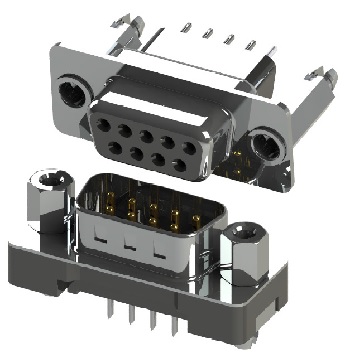

627 628 (281 kB)	a series of D-Sub connectors: 627 - plug, 628 - receptacle low and high profiles available two contact rows through-hole vertical mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	9, 15, 25, 37, 50	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +105

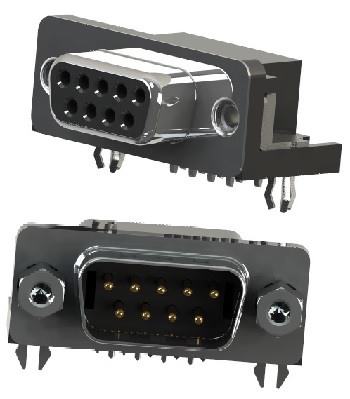

629 630 (129 kB)	a series of D-Sub connectors: 629 - plug, 630 - receptacle two contact rows with 0.370" (9.44 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +105

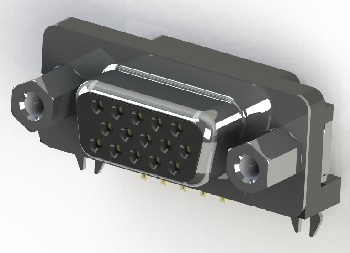

631 632 (174 kB)	a series of High-Density D-Sub connectors: 631 - plug, 632 - receptacle three contact rows with 0.125" (3.175 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	15, 26	0.090" (2.29 mm)	0.078" (1.98 mm)	5	10	5000	-55 - +105

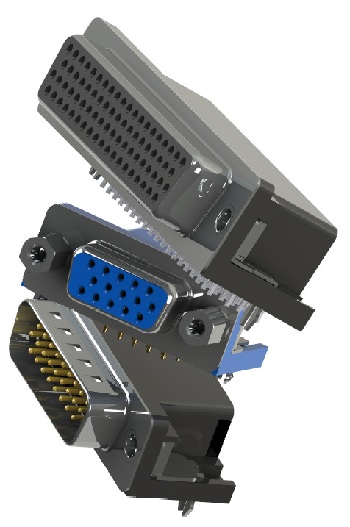

633 634 (196 kB)	a series of High-Density D-Sub connectors: 633 - plug, 634 - receptacle three contact rows with 0.350" (8.89 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	15, 26, 44, 62, 78	0.090" (2.29 mm)	0.078" (1.98 mm)	5	10	5000	-55 - +105

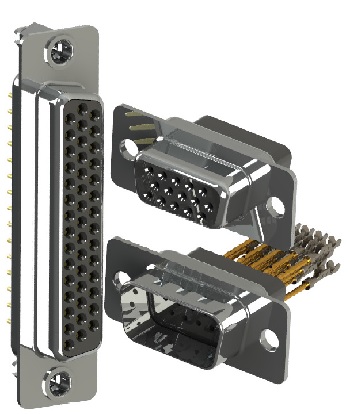

637 638 (267 kB)	a series of High-Density D-Sub connectors: 637 - plug, 638 - receptacle low and high profiles available (high profile in 15- and 26-pin versions only) three contact rows through-hole vertical mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	15, 26, 44, 62, 78	0.090" (2.29 mm)	0.078" (1.98 mm)	5	10	5000	-55 - +105

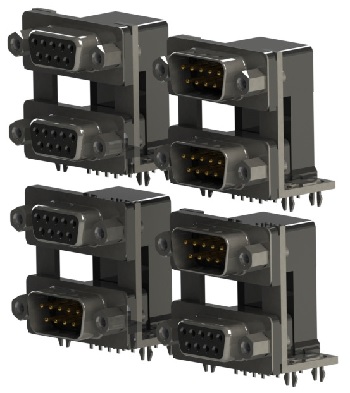

661 662 663 664 (223 kB)	a series of dual port D-Sub connectors: 661 - plug over plug, 662 - receptacle over receptacle, 663 - plug over receptacle, 664 - receptacle over plug two contact rows with 0.318" (8.08 mm) footprint right-angle bend through-hole mounting contact plating: gold over nickel for the mating area, tin plating on contact tails metal shell provides EMI / RFI shielding compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +105

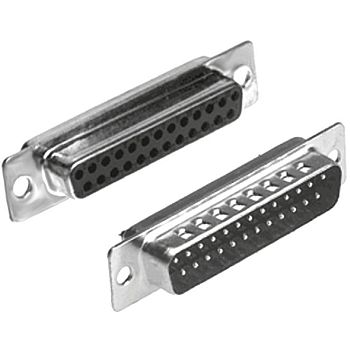

MHDBxx‑SP (164 kB)	a series of D-Sub connectors for cable: MHDBxx-SP - plug, MHDBxx-SS - receptacle; xx - number of contacts two contact rows stamped & formed contacts, min. 100 inserts cable mounting, contact termination: solder cup tail contact plating: gold over nickel	9, 15, 25, 37, (50 on request)	0.109" (2.77 mm)	0.112" (2.84 mm)	5	20	1000	-55 - +105
MHDBxx‑SS (165 kB)

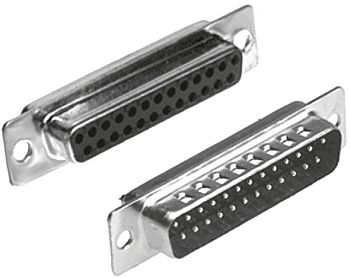

MHDMxx‑SP (172 kB)	a series of D-Sub connectors for cable: MHDMxx-SP - plug, MHDMxx-SS - receptacle; xx - number of contacts two contact rows machined contacts, min. 500 inserts cable mounting, contact termination: solder cup tail contact plating: gold over nickel	9, 15, 25, 37, 50	0.109" (2.77 mm)	0.112" (2.84 mm)	5		1000	-55 - +105
MHDMxx‑SS (170 kB)
MHHDS‑xx‑M‑T‑B‑S	a series of High-Density D-Sub connectors for cable: MHHDS-xx-M-T-B-S - plug, MHHDS-xx-F-T-B-S - receptacle; xx - number of contacts three contact rows stamped & formed contacts, min. 100 inserts cable mounting, contact termination: solder cup tail contact plating: gold over nickel	15, 26, 44, 62	0.090" (2.29 mm)	0.078" (1.98 mm)	5	30	1000	-55 - +105
MHHDS‑xx‑F‑T‑B‑S

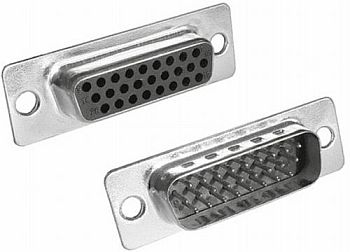

MHHDS‑xx‑M‑T‑B‑M (86 kB)	a series of High-Density D-Sub connectors for cable: MHHDS-xx-M-T-B-M - plug, MHHDS-xx-F-T-B-M - receptacle; xx - number of contacts three contact rows machined contacts, min. 500 inserts cable mounting, contact termination: solder cup tail contact plating: gold over nickel	15, 26, 44, 62	0.090" (2.29 mm)	0.078" (1.98 mm)	5	30	1000	-55 - +105

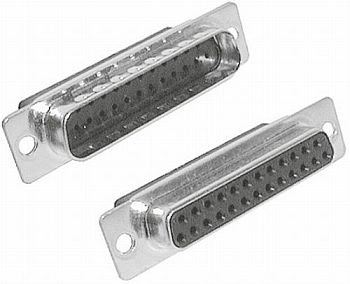

MHDBCxx‑SP (115 kB)	a series of D-Sub connectors for cable: MHDBCxx-SP - plug, MHDBCxx-SS - receptacle; xx - number of contacts two contact rows stamped & formed contacts, min. 100 inserts cable mounting, contact termination: crimp contact plating: gold over nickel	9, 15, 25, 37, (50 on request)	0.109" (2.77 mm)	0.112" (2.84 mm)	3	30	1000	-55 - +105
MHDBCxx‑SS (150 kB)

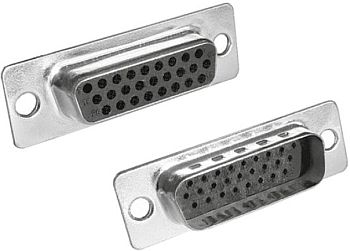

MHHDBCxx‑SP (76 kB)	a series of High-Density D-Sub connectors for cable: MHHDBCxx-SP - plug, MHHDBCxx-SS - receptacle; xx - number of contacts three contact rows stamped & formed contacts, min. 100 inserts cable mounting, contact termination: crimp contact plating: gold over nickel	15, 26, 44, 62	0.090" (2.29 mm)	0.078" (1.98 mm)	5	30	1000	-55 - +105
MHHDBCxx‑SS (77 kB)

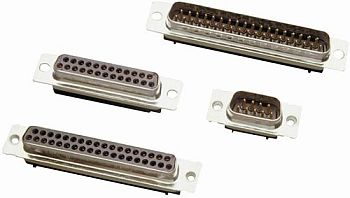

MH1055x	a series of IDC D-Sub connectors for cable: MH1055x - plug, MH1057x - receptacle; x - version two contact rows cable mounting, IDC type connector mounting method: thru-holes contact plating: gold over nickel	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	1.5	10	500	-55 - +125
MH1057x
MH1056x	a series of IDC D-Sub connectors for cable: MH1056x - plug, MH1059x - receptacle; xx - number of contacts two contact rows cable mounting, IDC type connector mounting method: clinch nuts contact plating: gold over nickel	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	1.5	10	500	-55 - +125
MH1059x

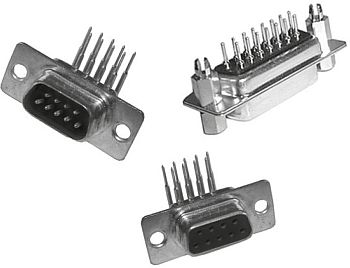

MHDDxx‑M‑T‑B‑S (146 kB)	a series of D-Sub connectors for PCB: MHDDxx-M-T-B-S - plug, MHDDxx-F-T-B-S - receptacle; xx - number of contacts two contact rows stamped & formed contacts, min. 100 inserts through-hole vertical mounting contact termination: PCB tail contact plating: gold over nickel	9, 15, 25, 37, (50 on request)	0.109" (2.77 mm)	0.112" (2.84 mm)	3	35	1000	-55 - +85
MHDDxx‑F‑T‑B‑S (147 kB)
MHDDxx‑M‑T‑B‑M (114 kB)	a series of D-Sub connectors for PCB: MHDDxx-M-T-B-M - plug, MHDDxx-F-T-B-M - receptacle; xx - number of contacts two contact rows machined contacts, min. 500 inserts through-hole vertical mounting contact termination: PCB tail contact plating: gold over nickel	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	5		1000	-55 - +105
MHDDxx‑F‑T‑B‑M (113 kB)
MHDDxx‑M‑T‑B‑S‑RBM (102 kB)	a series of D-Sub connectors for PCB: MHDDxx-M-T-B-S-RBM - plug, MHDDxx-F-T-B-S-RBM - receptacle; xx - number of contacts two contact rows stamped & formed contacts, min. 100 inserts through-hole right-angle mounting contact termination: PCB tail with 0.370" (9.4 mm) footprint right-angle bend contact plating: gold over nickel	9, 15, 25, 37, (50 on request)	0.109" (2.77 mm)	0.112" (2.84 mm)	3	25	5000	-55 - +85
MHDDxx‑F‑T‑B‑S‑RBM (98 kB)
MHDDxx‑M‑T‑B‑M‑RBM (198 kB)	a series of D-Sub connectors for PCB: MHDDxx-M-T-B-M-RBM - plug, MHDDxx-F-T-B-M-RBM - receptacle; xx - number of contacts two contact rows machined contacts, min. 500 inserts through-hole right-angle mounting contact termination: PCB tail with 0.370" (9.4 mm) footprint right-angle bend contact plating: gold over nickel	9, 15, 25, 37	0.109" (2.77 mm)	0.112" (2.84 mm)	5	10	5000	-55 - +125
MHDDxx‑F‑T‑B‑M‑RBM (111 kB)
