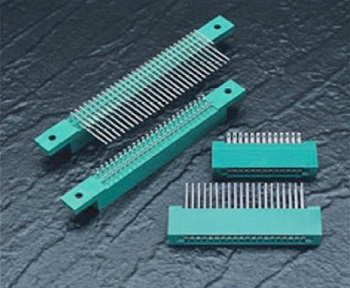

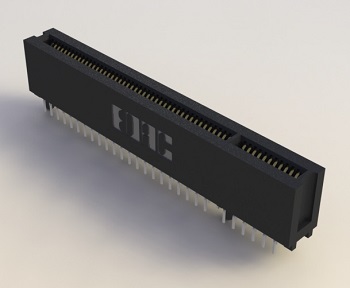

CardEDGE+ Card Edge connectors available in 8,000 standard styles. Part type Description Total number of contacts Contact spacing Connector mounting pattern Nominal thickness of PCB Current max. [A] Insulator withstanding voltage [V] Contact resistance max. [mΩ] Insulation resistance min. [MΩ] Operating temp. [°C] Enlarge using the cursor 301 (169 kB) EISA or ISA (IBM XT/AT) daughter boards accommodated with bi-level contact points and cards slot depths high profile insulator body 0.610" (15.49 mm) contact termination: PCB tails in 4 rows at 0.100" (2.54 mm) spacing mounting posts provide positive location and retention contact plating: gold on the mating area, tin on the contact tails, nickel underplate 188 (2 levels, 4 rows) 0.050" (1.27 mm) 0.050" (1.27 mm) x 0.100" (2.54 mm) (4 rows) 0.062" (1.57 mm) 1 500 30 1000 -55 - +85 302 (326 kB) accommodates MCA (Microchannel Architecture) daughter boards for IBM PS/2 systems high profile insulator body 0.610" (15.49 mm) contact termination: PCB tails in 4 rows at 0.100" (2.54 mm) spacing mounting posts provide positive location and retention contact plating: gold on the mating area, tin on the contact tails, nickel underplate 182 (2 rows) 0.050" (1.27 mm) 0.050" (1.27 mm) x 0.100" (2.54 mm) (4 rows) 0.062" (1.57 mm) 1 500 30 1000 -65 - +125 305 315 355 (236 kB) 0.156" (3.96 mm) pitch dual row configuration low profile insulator body 0.470" (11.94 mm) contact termination: PCB tail, wire hole and extender board bends optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 12 - 86 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.140" (3.56 mm) 0.062" (1.57 mm) 5 1800 10 5000 -65 - +125 306 316 356 (238 kB) 0.156" (3.96 mm) pitch single centreline row low profile insulator body 0.460" (11.68 mm) contact termination: PCB tail, wire hole optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 6 - 43 (1 row) 0.156" (3.96 mm) 0.156" (3.96 mm) 0.062" (1.57 mm) 5 1800 10 5000 -65 - +125 307 357 (361 kB) 0.156" (3.96 mm) pitch single or dual row configurations low profile insulator body 0.460" (11.68 mm) contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 6 - 44 (1 row) 12 - 88 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -65 - +125 310 (218 kB) 0.156" (3.96 mm) pitch single or dual row configurations low profile insulator body 0.460" (11.68 mm) with card slot barrier contact termination: PCB tail, wire hole, square wire wrap and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 30 (1 row) 60 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -40 - +105 317 (227 kB) 0.156" (3.96 mm) pitch single or dual row configurations high profile insulator body 0.720" (18.29 mm) contact termination: 0.045" (1.14 mm) square wire wrap optional pre-assembled card guides polarizing keys contact plating: gold over nickel for entire contacts 6 - 43 (1 row) 12 - 86 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -65 - +125 322 (212 kB) 0.156" (3.96 mm) pitch single or dual row configurations low profile insulator body 0.473" (12.01 mm) with card guides contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 22 (1 row) 44 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -40 - +105 325 (219 kB) 0.100" (2.54 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail, wire hole and 0.025" (0.64 mm) square wire wrap polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 5 - 61 (1 row) 10 - 122 (2 rows) 0.100" (2.54 mm) 0.100" (2.54 mm) x 0.300" (7.62 mm) 0.125" (3.18 mm) 3 1200 10 5000 -65 - +125 333 (223 kB) 0.156" (3.96 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 6 - 43 (1 row) 12 - 86 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1800 10 5000 -65 - +125 337 387 (296 kB) 0.156" (3.96 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 6 - 43 (1 row) 12 - 86 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1800 10 5000 -65 - +125 338 (224 kB) 0.156" (3.96 mm) pitch single or dual row configurations low profile insulator body 0.473" (12.01 mm) contact termination: 0.045" (1.14 mm) square wire wrap optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 10 - 28 (1 row) 20 - 56 (2 rows) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -65 - +125 340 (673 kB) 0.100" (2.54 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 5 - 60 (1 row) 10 - 120 (2 rows) 0.100" (2.54 mm) 0.100" (2.54 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1500 10 5000 -65 - +125 341 391 (321 kB) 0.100" (2.54 mm) pitch single or dual row configurations low profile insulator body 0.437" (11.10 mm) contact termination: PCB tail, wire hole, and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 5 - 60 (1 row) 10 - 120 (2 rows) 0.100" (2.54 mm) 0.100" (2.54 mm) x 0.140" (3.56 mm) 0.062" (1.57 mm) 3 1200 10 5000 -65 - +125 342 392 (279 kB) 0.100" (2.54 mm) pitch single or dual row configurations low profile insulator body 0.590" (14.99 mm) contact termination: PCB tail, wire hole, square wire wrap, and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 5 - 60 (1 row) 10 - 120 (2 rows) 0.100" (2.54 mm) 0.100" (2.54 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1200 10 5000 -65 - +125 345 395 (336 kB) 0.100" (2.54 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 5 - 72 (1 row) 10 - 144 (2 rows) 0.100" (2.54 mm) 0.100" (2.54 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1200 10 5000 -65 - +125 346 396 (210 kB) 0.125" (3.18 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail (straight or right angle), wire hole, square wire wrap, and extender board bends optional pre-assembled card guides polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 5 - 50 (1 row) 10 - 100 (2 rows) 0.125" (3.18 mm) 0.125" (3.18 mm) x 0.250" (6.35 mm) 0.062" (1.57 mm) 3 1500 10 5000 -65 - +125 368 (157 kB) 0.156" (3.96 mm) pitch dual row configurations high profile insulator body 0.630" (16.00 mm) contact termination: press fit option include 0.031" (0.79 mm) square wire wrap & PCB tails polarizing keys contact plating: gold over nickel for entire contacts 4 (end module) 6 (centre modul) 0.156" (3.96 mm) 0.156" (3.96 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -40 - +125 379 (290 kB) 0.150" (3.81 mm) pitch single or dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail, wire wrap and extender board bends polarizing keys contact plating: gold on the mating area, tin on the contact tails, nickel underplate 6 - 32 (1 row) 12 - 64 (2 rows) 0.150" (3.81 mm) 0.150" (3.81 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1800 10 5000 -65 - +125 395‑AT (262 kB) 0.100" (2.54 mm) pitch for IBM-AT industry standard architecture dual row configurations high profile insulator body 0.600" (15.24 mm) contact termination: PCB tail (straight or right angle), square wire wrap, and extender board bends contact plating: gold on the mating area, tin on the contact tails, nickel underplate 98 (2 groups of contacts: 62 + 36) 0.100" (2.54 mm) 0.100" (2.54 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 3 1200 10 5000 -40 - +105 243 (168 kB) 0.200" (5.08 mm) pitch single or dual row configurations high profile insulator body 0.656" (16.66 mm) polarizing keys contact termination: 0.045" (1.14 mm) square wire wrap, dual-row at 0.200" (5.08 mm) spacing contact plating: gold over nickel for entire contacts 2, 3 (1 row) 4, 6 (2 rows) 0.200" (5.08 mm) 0.200" (5.08 mm) x 0.200" (5.08 mm) 0.062" (1.57 mm) 5 1800 10 5000 -65 - +125
